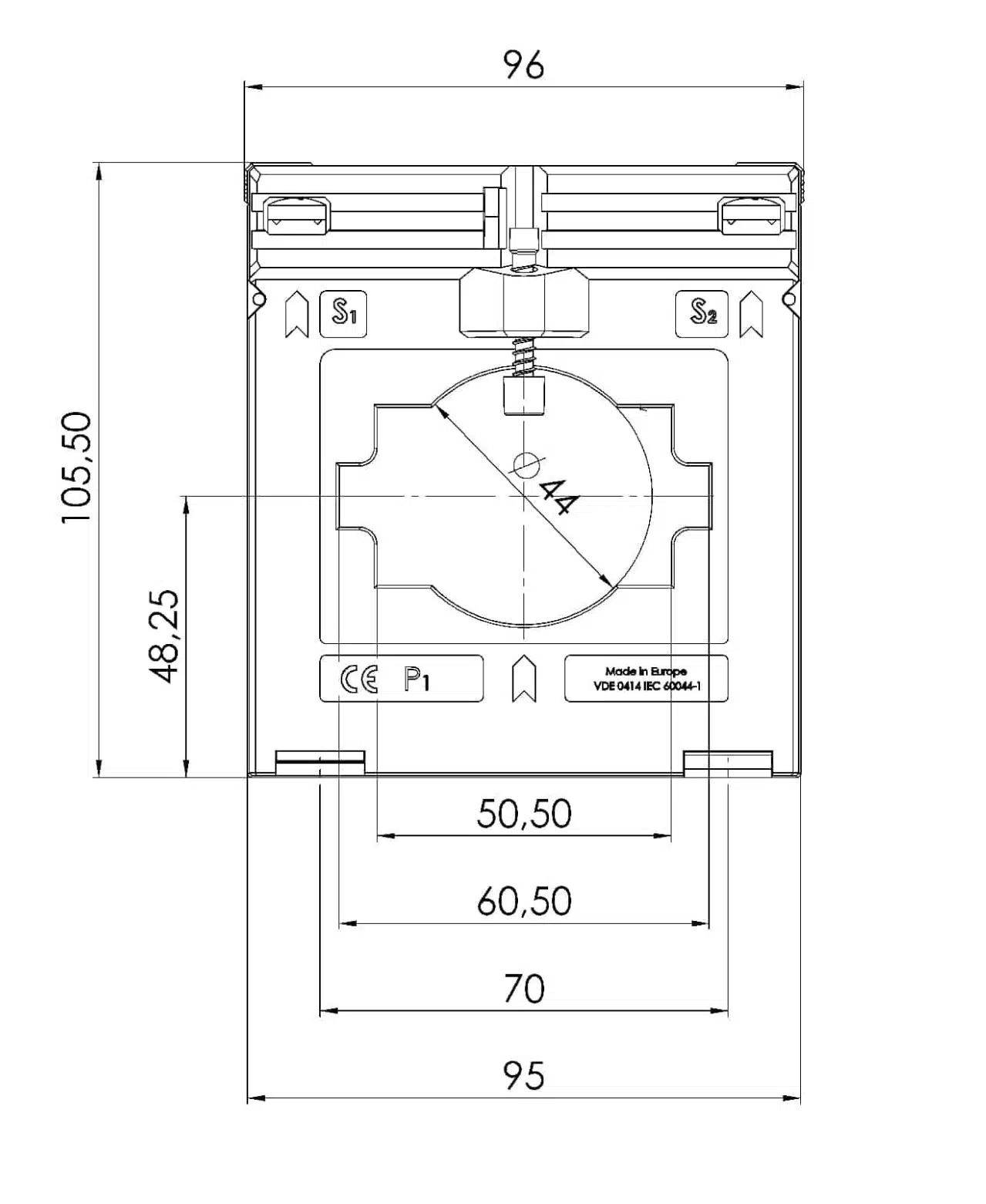

EASK 61.4, EASK – Plug-on current transformer billing measurement, technical drawing 1

EASK - Plug-in current transformer billing measurement

EASK 61.4

Primary Current

Secondary Current

Burden (VA)

Accuracy Class

Clear

plus testing costs according to the conformity assessment procedure (see order confirmation)

Add to watch list

Export as PDF

EAN: 4061701059182 SKU: EASK 61.4 Category: EASK - Plug-in current transformer billing measurement

Bus bar 1 in mm	60x10
Bus bar 2 in mm	2x50x10
Round conductor in mm	44
Width in mm	95
Height in mm	108,5
Depth in mm	58
Snap-on mounting
Sealed shutters	59042
Sealed shutters 2

Primary Current	200, 250, 300, 400, 500, 600, 750, 800, 1000, 1200, 1250, 1500
Secondary Current	1, 5
Burden (VA)	1,5, 2,5, 5, 10, 15, 30
Accuracy Class	0,2, 0,5, 0,5S
Bautiefe Wandler	40

Therm. nominal continuous current I_cth: 1,2 x I_pr
Therm. nominal short-time current I_th: 60 x I_pr, 1 Sek.
Max. operating voltage U_m: 0,72 kV
Isolation test voltage: 3 kV, U_eff, 50 Hz, 1 min
Nominal rated frequency: 50 Hz
Isolation class: E
