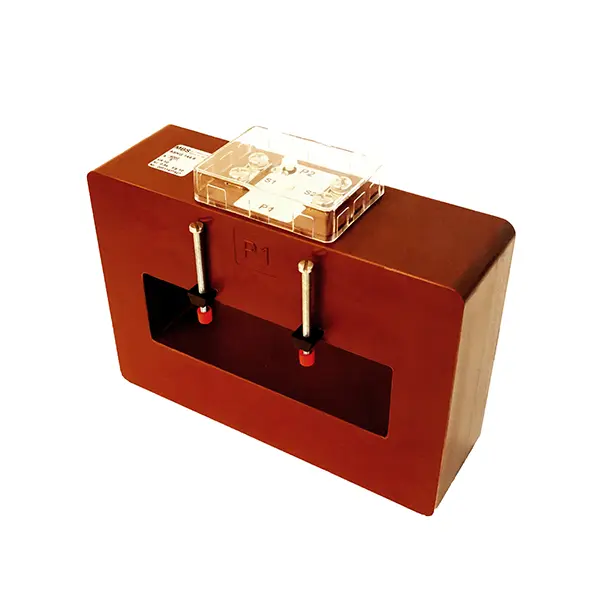

Type ASKG 144.6
– Cast resin transformer, polyurethane
– Operating temperature -5°C…+50°C
– Storage temperature -25°C…75°C
– Rated frequency 50 (60) Hz
– Insulation test voltage 3kV Ueff; 50Hz, 1 minute

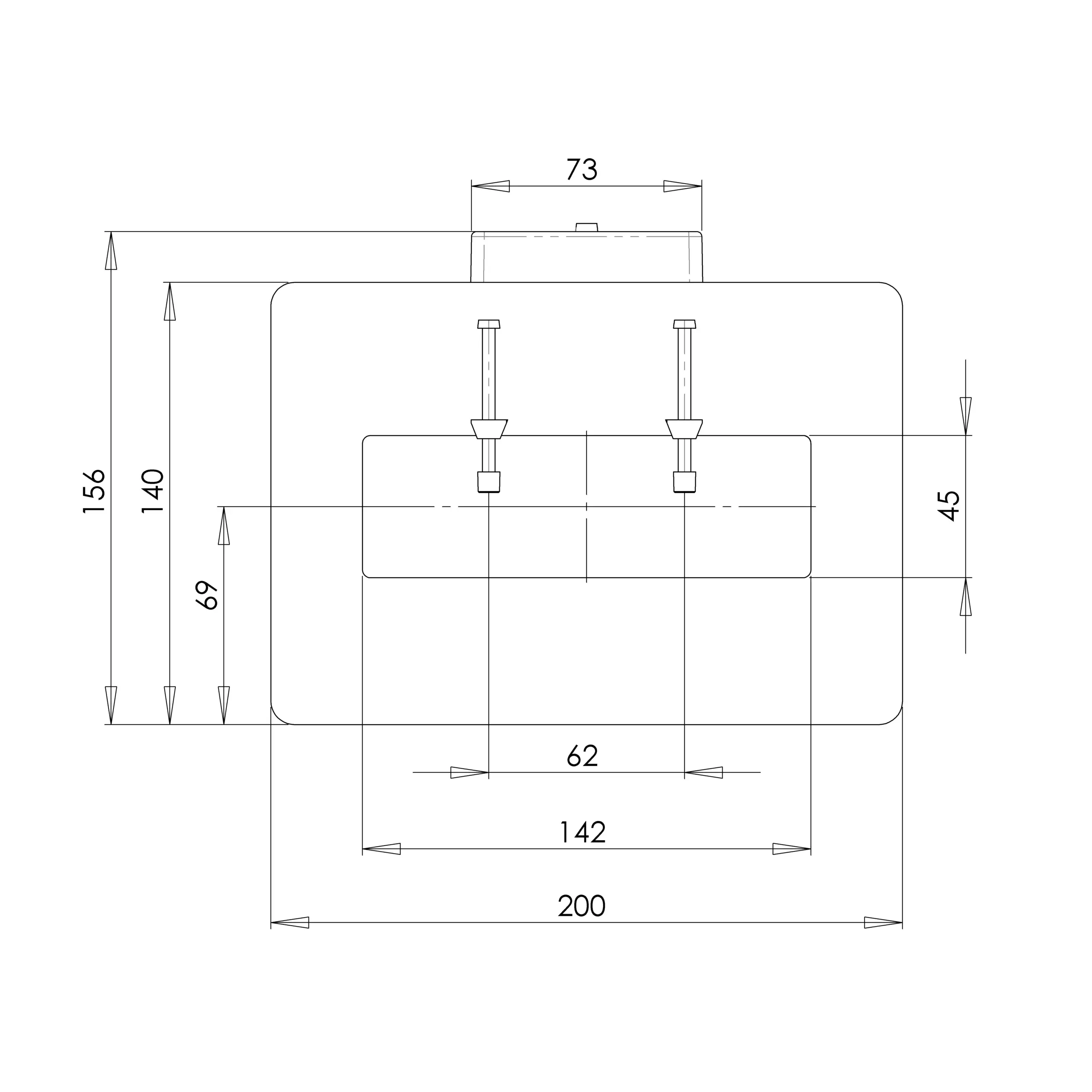

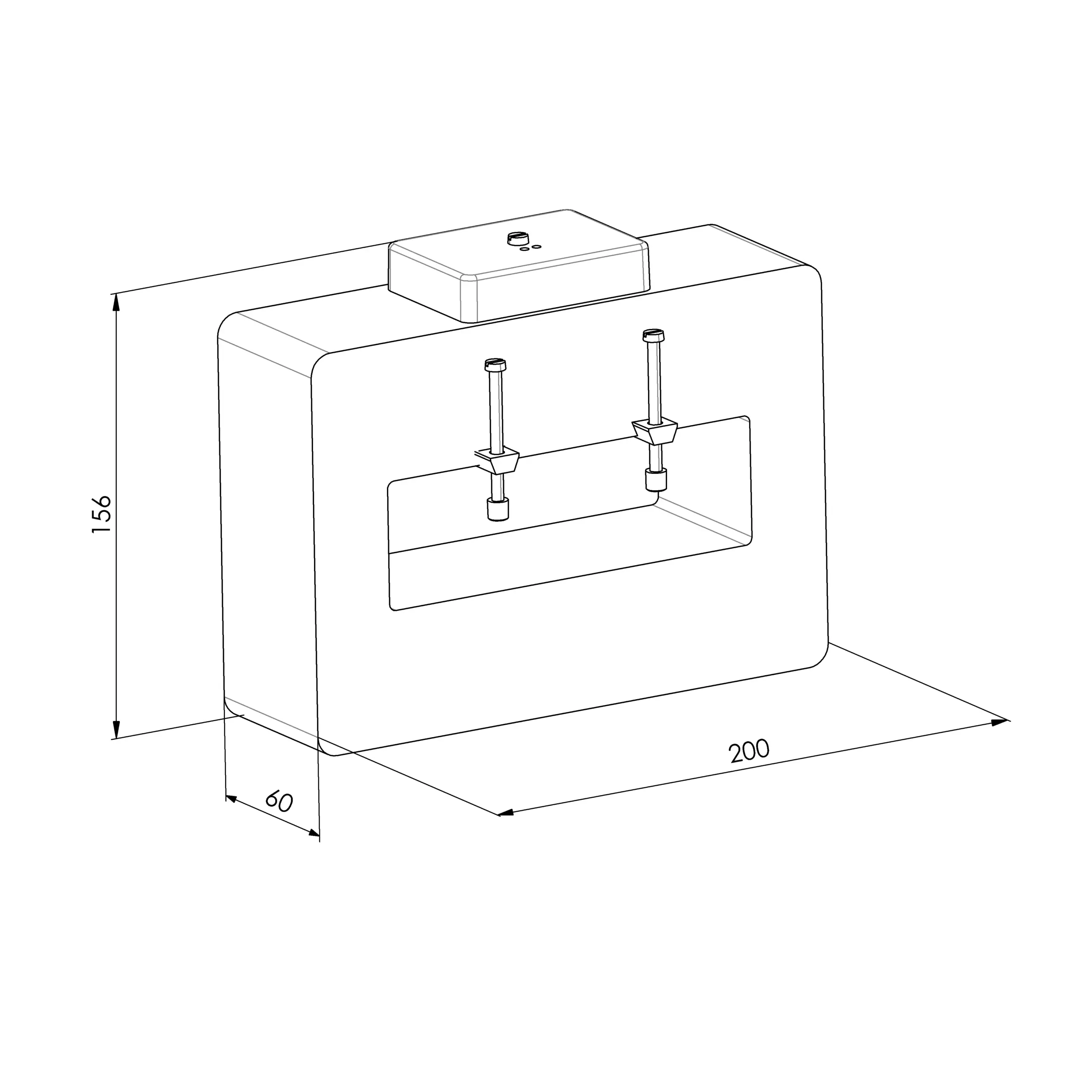

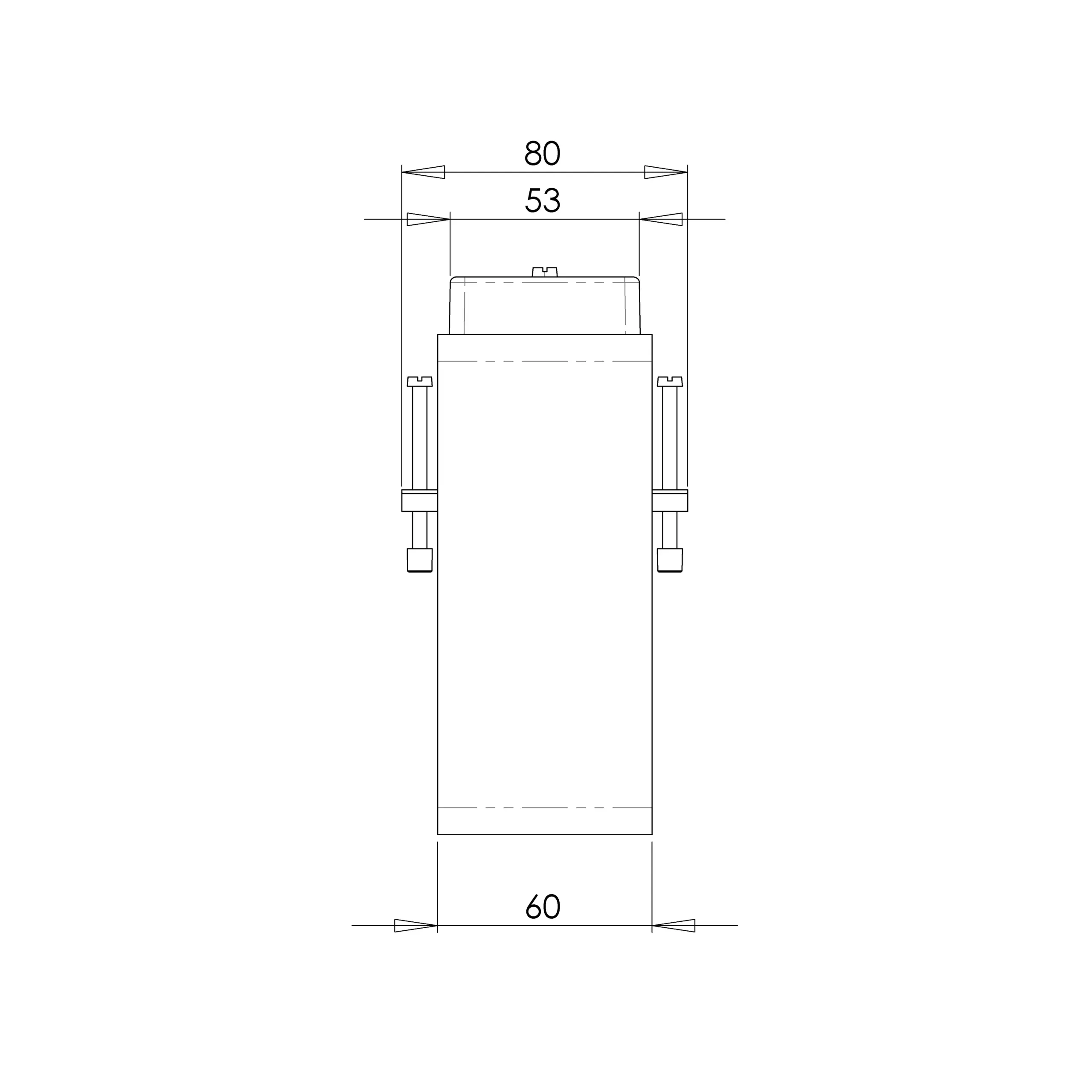

Dimensions
Dimensions: 120 x 140 x 60 (80) mm
Primary conductor opening: 142 x 45 mm
