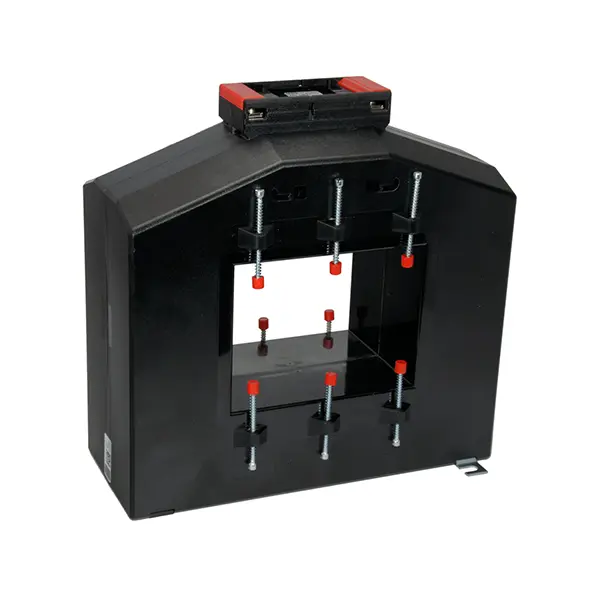

Type ASKG 129.10
– Partially encapsulated, polyurethane casting resin
– Housing: polycarbonate, flame retardant
– Operating temperature -5°C…+50°C
– Storage temperature -25°C…75°C
– Rated frequency 50 (60) Hz
– Insulation test voltage 3kV Ueff; 50Hz, 1 minute

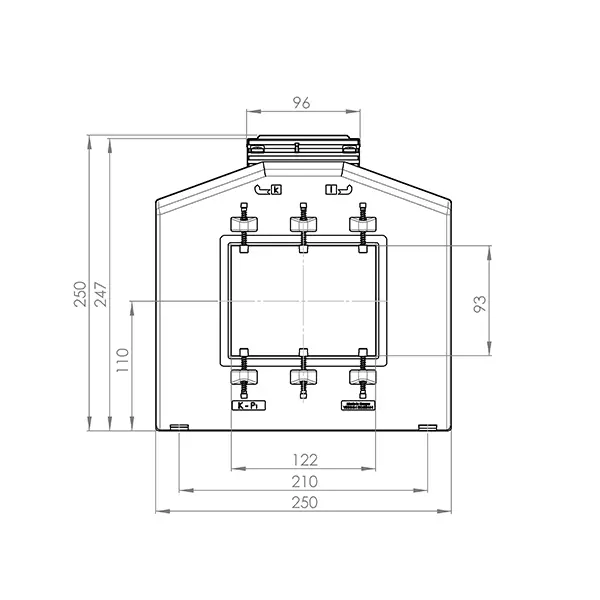

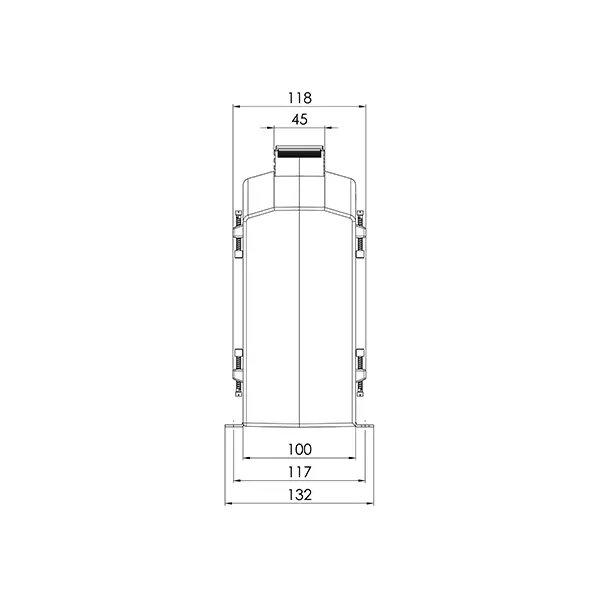

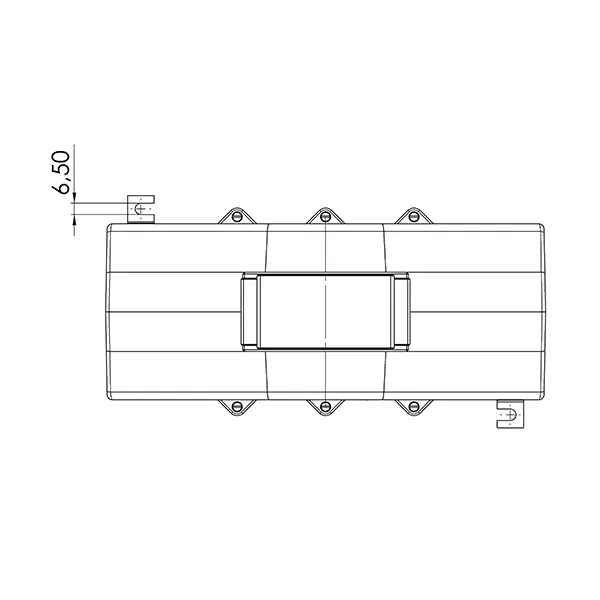

Dimensions
Dimensions: 250 x 250 x 100 118) mm
Primary conductor opening: 122 x 93 mm
