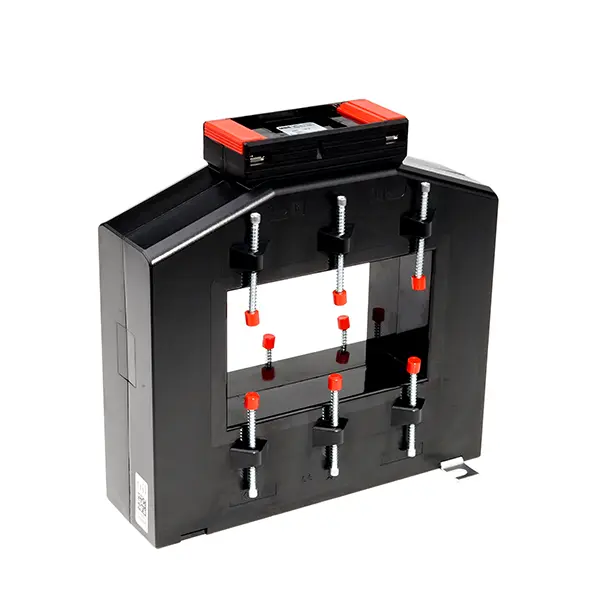

Type ASKG 127.6
– Partially encapsulated, polyurethane casting resin
– Housing: polycarbonate, flame retardant
– Operating temperature -5°C…+50°C
– Storage temperature -25°C…75°C
– Rated frequency 50 (60) Hz
– Insulation test voltage 3kV Ueff; 50Hz, 1 minute

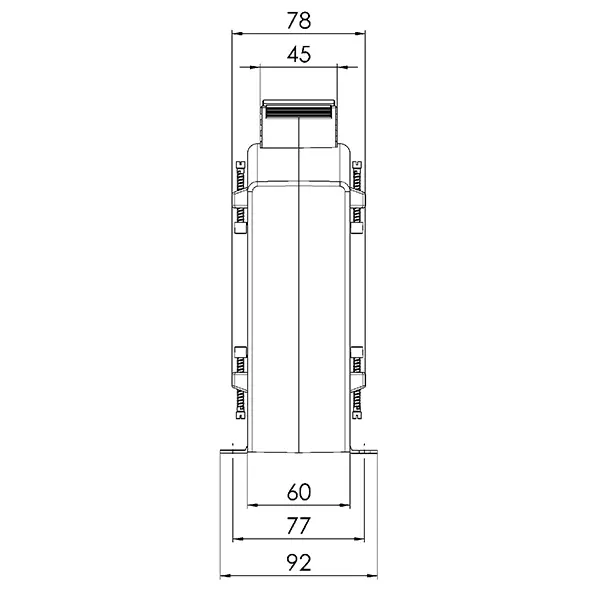

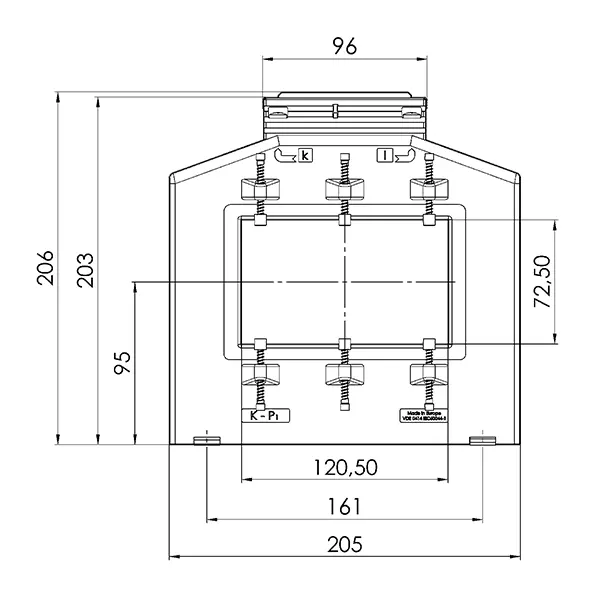

Dimensions
Dimensions: 206 x 205 x 60 (78) mm
Primary conductor opening: 120.5 x 72.5 mm
