KSW 30

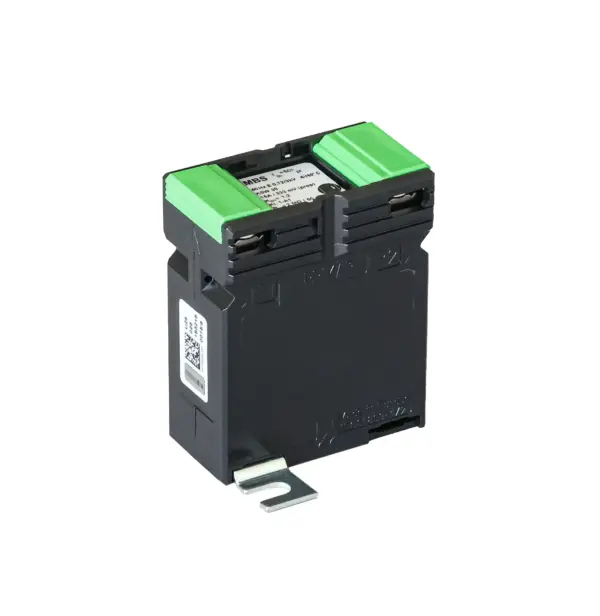

KSW – Low power current transformer, Product image KSW 30 an KSW 40

KSW 30 and KSW 40, technical drawing 1

KSW 30 and KSW 40, technical drawing 2

KSW 30 and KSW 40, technical drawing 3

KSW – Low power current transformer

KSW 30

Primary Current

Secondary voltage in mV

Accuracy Class

Clear

Add to watch list

Export as PDF

SKU: KSW 30 Category: KSW – Low power current transformer

Bus bar 1 in mm
Bus bar 2 in mm
Round conductor in mm
Width in mm	61
Height in mm	75,5
Depth in mm	35
Snap-on mounting	53011
Sealed shutters	59040
Sealed shutters 2

Primary Current	1, 2,5, 5, 10, 15, 20
Secondary voltage in mV	333
Accuracy Class	1

Therm. nominal continuous current I_cth: 1,0 x I_pr
Therm. nominal short-time current I_th: 60 x I_pr, 1 Sek.
Max. operating voltage U_m: 0,72 kV
Isolation test voltage: 3 kV, U_eff, 50 Hz, 1 Min.
Nominal rated frequency: 50 Hz
Isolation class: E
