Description:

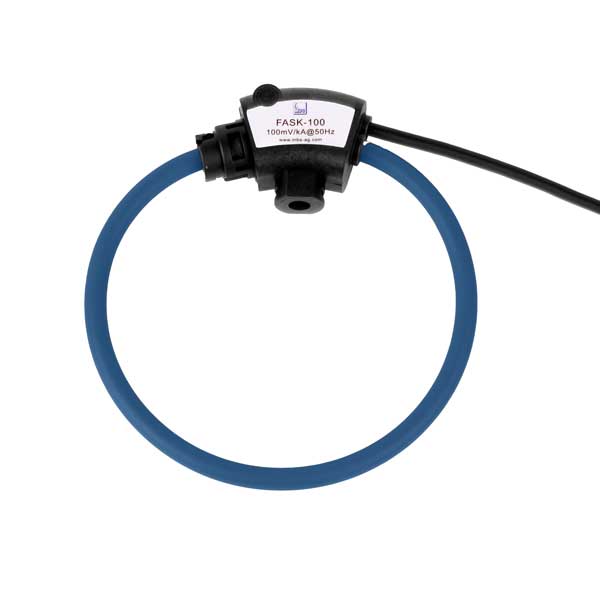

The flexible and ultra-thin design of the coils means that they can be easily wound around the current-carrying conductors and plugged together.
Simple, fast, and interruption-free installation around busbars or cable bundles is also possible.
The Rogowski coil in combination with the QE-485 universal converter offers you freely configurable analogue and digital outputs, as well as an RS-485 Modbus RTU interface.
The 3 phase integrator ROI-3 is ideally suited for the output with 3 x 1A.
The integrator circuit is necessary to correct the phase position of the passive Rogowski coil by 90°.
The Rogowski coils are available in cable lenghts of 3m, 5m and 10m.
Other variants possible on request.
