The M3 Count meter is a fully electronic electricity meter for fixed installation in three-phase four-wire networks or single-phase two-wire networks and is designed to measure active electrical energy and register it in up to two energy tariffs. It is an indoor meter as a built-in installation device for top-hat rail mounting, in a compact design of only 4 graduation units.

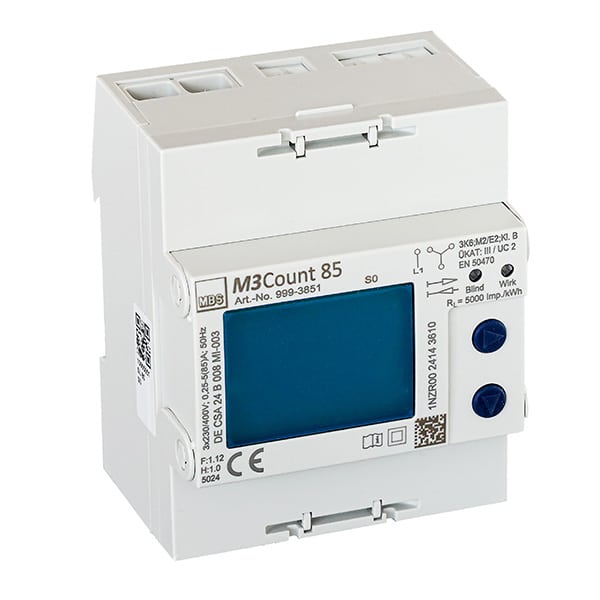

The M3 Count 85 meter is available for direct measuring connection up to 85 A limit current in low-voltage networks.
The M3 Count 5//1 meter is intended for connection to current transformers with 5 A or 1 A secondary current in low-voltage networks.
– S0 pulse output for active and reactive energy
– Optional: M-Bus
– Optional: ModBus RTU (RS 485)
