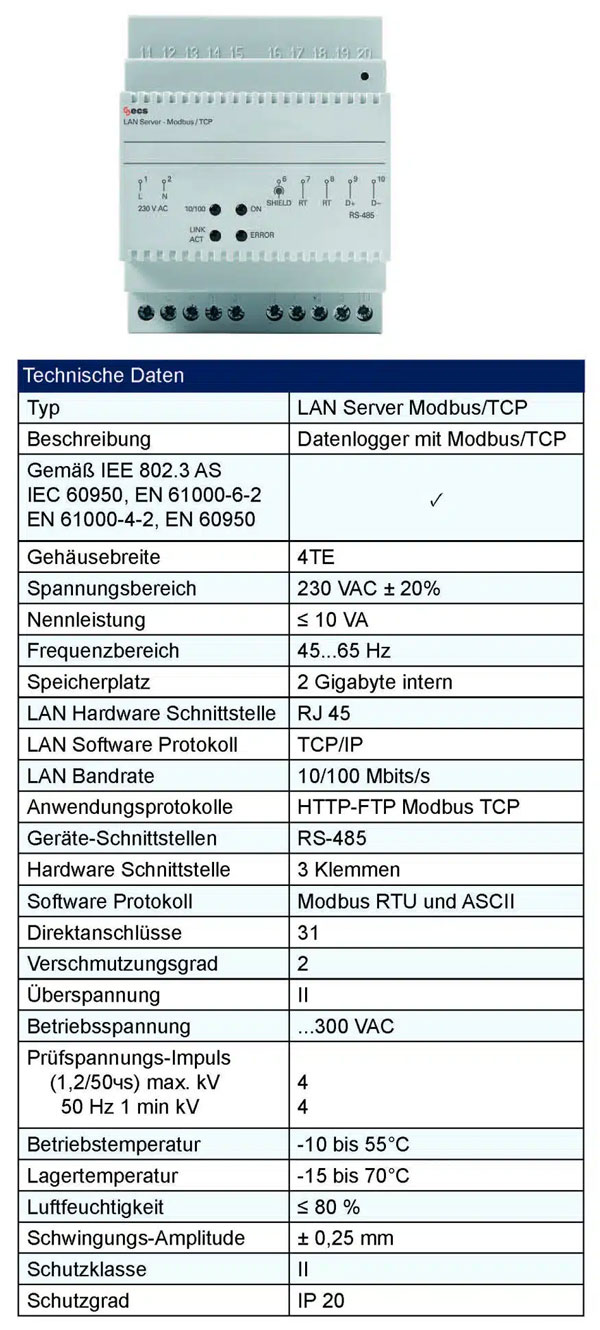

Description:
This LAN server collects measurement data from the energy meter connected via a serial Modbus and displays electrical values on the web browser interface thanks to an Ethernet (RJ485) interface. In addition, it can issue configuration and operating commands from a supervisor unit and store the measurement data (logs) locally for a long period of time.
Overview
- The data logger has the following functions at a glance Modbus interface
- TCP/P interface, the HTTP, SNTP, SMTP and FTP protocols
- Connect up to 31 devices with Modbus
- Plug-and-play and easy to use
- Advanced web browser user interface
- Large memory capacity (up to 2 gigabytes) for long-distance measurements
- 4 DIN modules (72 mm)
The user interface
The intuitive web-based interface supports multiple languages and allows you to
- Select and configure any device connected via Modbus
- Display electrical readings in real time
- View the log of collected electrical measurement data stored in the internal mass memory
- Configure LAN server parameters (i.e. network, log data types, storage frequency, etc.)
Data protocol
- The data connection between LAN server and PC is based on TCP/IP and HTTP protocol
- Log files can be downloaded to the user PC thanks to an internal FTP server
Date and time
- The LAN server has a built-in real-time clock that synchronises the exact local time and date in the NTP network protocol
Data storage
- Data storage is guaranteed for at least 10 years thanks to an internal 2 Gbytes micro SD card.
- For example, data from 5 energy meters can be stored and requested for 2 years.
