Description:

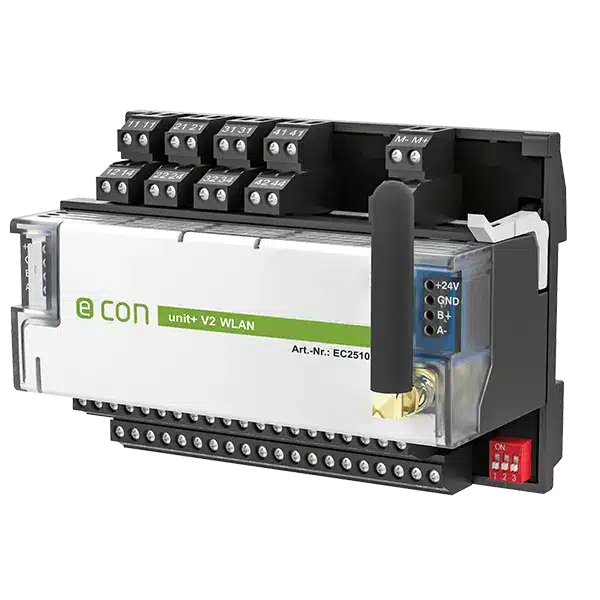

The econ unit+ V2 is a powerful data logger for energy and consumption recording in buildings, on machines and plants. The processing of the recorded data is done in the energy management software econ4.
Just like our other hardware components, the data loggers work according to the plug & play principle. This means that they integrate directly into your existing infrastructure. Nevertheless, the system remains scalable and easy to expand.
Overview / technical data:
- Easy and fast configuration via platform-independent web browser
- Integration into the energy management software econ4 via plug & play
- Compact housing for installation on a DIN rail
- Two Ethernet ports with daisy chain function for chaining further devices e.g. econ sens3
- M-Bus and Modbus RTU interface allows reading of different meters e.g. electricity,
- water, gas and heat (up to 80 M-Bus loads / up to 32 Modbus RTU participants)
- Possibility of integration into a BACnet/IP or Modbus TCP network (Modbus server)
- Connection of expansion modules (simple fast cabling with jumper plug)
- Measured values can be sent alternatively or in parallel via mail (SSL) and FTP (SFTP) from the data base (Push) or via FTP (SFTP). (Push) or read out via FTP (SFTP) (Pull)
- Digital inputs (8x inputs for acquisition and counting of binary states up to 24 V DC, there of 4x contact inputs for potential-free switches, also suitable for counting SO pulses)
- Digital outputs (4x transistor outputs with current limitation)
- Relay outputs (4x changeover contacts)
- Analog inputs (3x configurable for resistance, voltage and current measurement) and
- Analog outputs (3x)
- Operating voltage 24 V DC +/- 10 % (external power supply required)
- Optional WLAN interface for connection to a WLAN network (operating modes: infrastructure and ad-hoc)
